HBOT

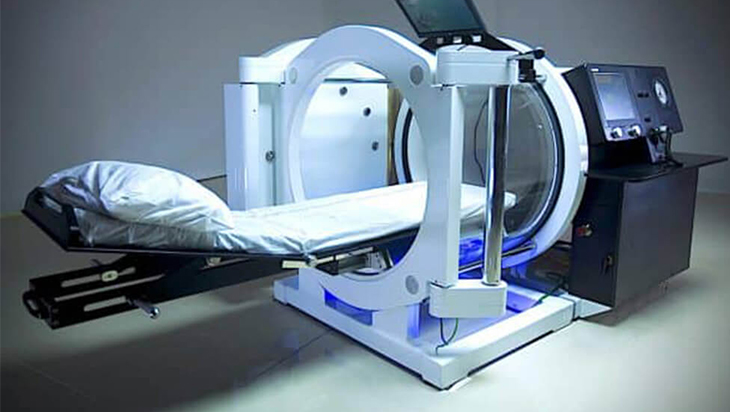

Hybrid 4000 Monoplace

Multiplace Hyperbaric Oxygen Therapy (HBOT) Chambers are pressurized up to 6.0 Atmospheres with Medical Grade Air. The patients breathe 100% Medical Grade Oxygen through a Hood or Mask System.

32″ / 81.3 cm Inside Diameter
Removable Stretcher
Gurney required
ASME – PVHO-1 – National Board

FDA-510(k) Cleared.
Oxygen Modality
TCOM Ready
Dual Modality optional

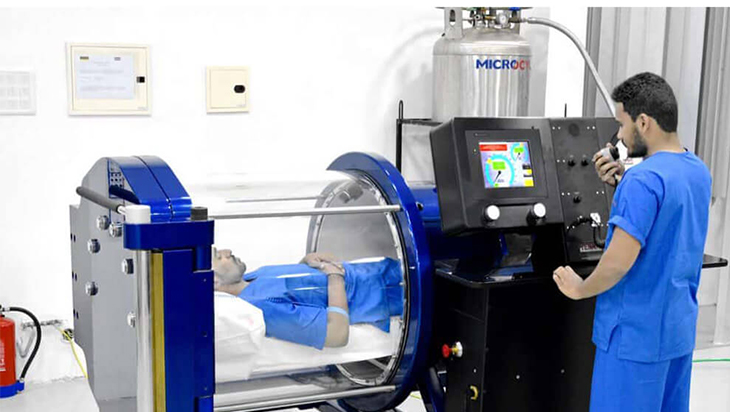

Hybrid 3200 Monoplace

Monoplace Hyperbaric Oxygen Therapy (HBOT) Chambers are pressurized up to 3.0 Atmospheres with 100% Medical Grade Oxygen. The patients can also breathe Medical Grade Air during an Air Break or through a Mask System.

40″ / 101.6 cm Inside Diameter
Integrated Stretcher – 750lb capacity
LED indication for data storage/device status
Gurney not required

ASME – PVHO-1 – National Board.
FDA-510(k) Cleared
TCOM Ready
Oxygen Modality
Air / Dual Modality

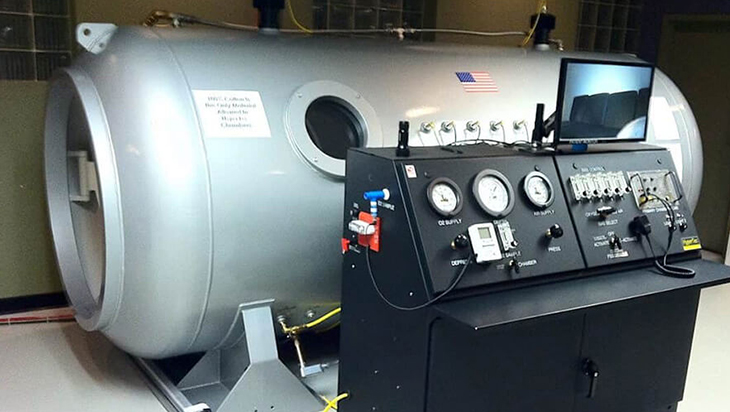

Model 6000 SL Multiplace

Multiplace Hyperbaric Oxygen Therapy (HBOT) Chambers are pressurized up to 6.0 Atmospheres with Medical Grade Air. The patients breathe 100% Medical Grade Oxygen through a Hood or Mask System.

60″ / 152.4 cm Diameter
ASME – PVHO-1 – National Board
FDA 510(k) cleared
Meets or exceeds NFPA-99-2015 requirements

Standard Configuration seats 4 patients + 1 attendant, with five BIBS systems
Stretch Configuration seats 5 patients + 1 attendant, with six BIBS systems
Optional Medical Service Lock
Large acrylic viewports
Options include a patient handling system, ECU, and Medical Service Lock.

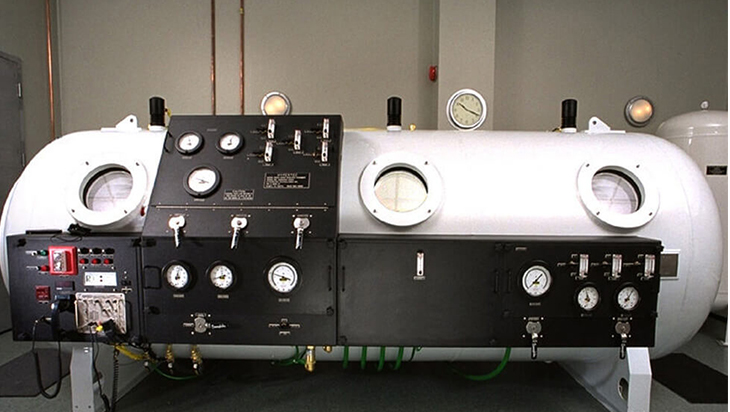

Model 7200 Double Lock

Multiplace Hyperbaric Oxygen Therapy (HBOT) Chambers are pressurized up to 6.0 Atmospheres with Medical Grade Air. The patients breathe 100% Medical Grade Oxygen through a Hood or Mask System.

72″ / 182.9 cm Diameter
ASME – PVHO-1 – National Board
FDA 510 (k) cleared
Meets or exceeds NFPA-99-2015 requirements
Rectangular door
Wheelchair accessable
Entry Lock fitted with circular doors

Large acrylic viewports
3 ATA service
Optional 6 ATA
Optional Patient handling system
Optional Environmental Control Unit
Optional Medical Service Lock.
Lease purchase available

Model 7200 SL Multiplace

Multiplace Hyperbaric Oxygen Therapy (HBOT) Chambers are pressurized up to 6.0 Atmospheres with Medical Grade Air. The patients breathe 100% Medical Grade Oxygen through a Hood or Mask System.Multiplace Hyperbaric Oxygen Therapy (HBOT) Chambers are pressurized up to 6.0 Atmospheres with Medical Grade Air. The patients breathe 100% Medical Grade Oxygen through a Hood or Mask System.

72″ / 182.9 cm Diameter
ASME – PVHO-1 – National Board
FDA 510 (k) cleared
NFPA-99-2015 Code Compliant

Rectangular Manway
Wheel Chair accessable
Seating from 7+1 to 9+1
Optional Medical Service Lock
Individual BIBS for Oxygen Hoods.
Fold Down Seating.
